51 23 100 Removing and installing/replacing right engine compartment lid lock

Necessary preliminary tasks:

F23/F33/F87 only:

• Remove right front-end strut

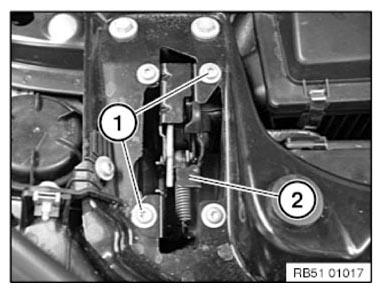

Release screws (1) and feed out engine compartment lid lock (2).

Tightening torque, refer to: 51 23 1AZ

Courtesy of BMW OF NORTH AMERICA, INC.

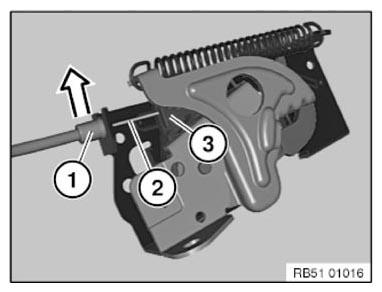

Unclip grommet (1).

Unhook Bowden cable (2) from engine compartment lid lock (3).

Courtesy of BMW OF NORTH AMERICA, INC.
