52 26 008 Removing and installing/replacing backrest side section on left or right rear seat backrest

Pull seat belt to middle and place over head restraint.

Pull top backrest side section (1) forwards and pull out upwards (2).

Courtesy of BMW OF NORTH AMERICA, INC.

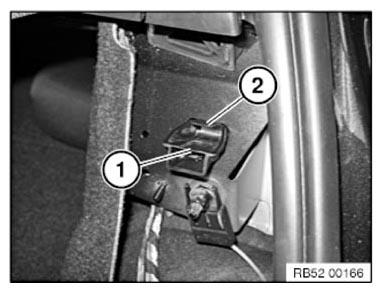

Press latch mechanism (2) to unlock the clip (1).

Pull clip (1) towards front out of the body.

If necessary, replace faulty clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

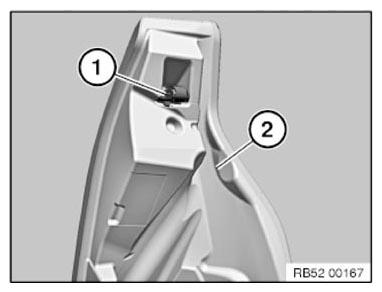

Insert the clip (1) in the backrest side section (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

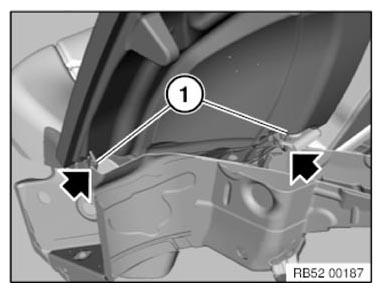

Insert guides (1) from backrest side section into mountings.

Courtesy of BMW OF NORTH AMERICA, INC.
