52 14 408 Replacing backrest cover for front passenger seat (normal/electrical)

Special tools required:

• 52 0 050

Necessary preliminary work:

• Remove the FRONT PASSENGER SIDE SEAT
• Remove the REAR PANEL
• Remove the GUIDE SLEEVES  for head restraint

Version with seat heating only:

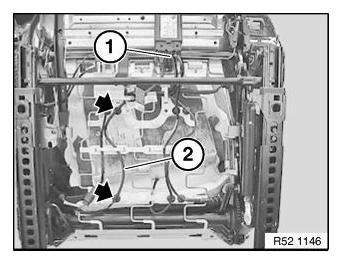

Unlock and disconnect plug connection seat heating backrest (1).

Detach cable strap.

Detach seat heater cable (2) from cable clips on seat mechanism.

Installation note:

Plug connections are coded against incorrect assembly.

Replace cable strap.

Courtesy of BMW OF NORTH AMERICA, INC.

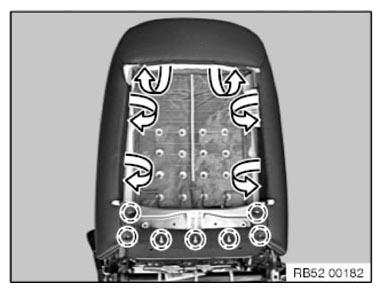

Lift welt out of backrest frame.

Detach the lower backrest cover from metal tabs.

Carefully slide bracing cloth with foam through backrest gap and seat structure.

If applicable, route cable carefully through seat and backrest mechanics as the edges of the frame may be sharp.

Installation note:

Slide foam completely through backrest gap and seat structure.

Make sure foam and bracing cloth are correctly fitted.

Courtesy of BMW OF NORTH AMERICA, INC.

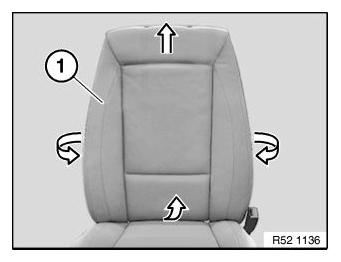

Pull off backrest cover (1) with upholstery sideways and towards top from backrest frame.

Courtesy of BMW OF NORTH AMERICA, INC.

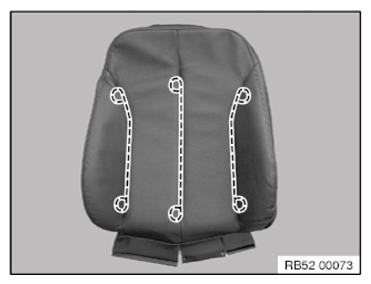

Release all clamps in marked area.

Remove backrest cover from padding.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

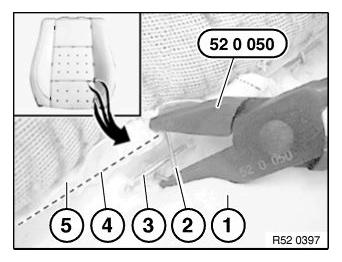

Bend new clamp (2) with special tool 52 0 050.

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Trim wire in backrest cover
5. Backrest cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

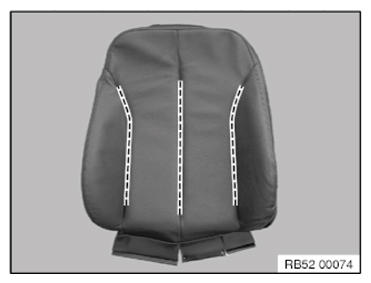

Pull trim wires out of backrest cover.

Cut new backrest cover to size and insert trim wires.

Courtesy of BMW OF NORTH AMERICA, INC.
