51 16... Removing and installing grab handle holder

Special tools required:

2 348 128
72 1 200

WARNING: Refer to: SAFETY INFORMATION for repair work on vehicles with airbag systems.

IMPORTANT: Risk of damage! Do not use sharp tools in the area of the head airbag. Refer to REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT HEAD AIRBAG

Necessary preliminary tasks:

Lower headlining completely, refer to: REMOVING AND REFITTING/REPLACING ROOFLINER

IMPORTANT: Lay out protective mats to protect the interior against metallic shavings from the drilled-out rivets and damage.

Lay out protective mats in the relevant working area:

Dashboard
Entrance area
Passenger compartment

Courtesy of BMW OF NORTH AMERICA, INC.

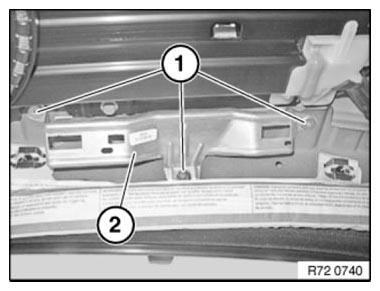

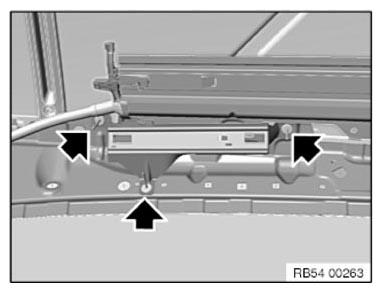

Drill off the rivet plate (1) down to rivet shank with a 10 mm twist drill bit.

Unscrew holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Front holder:

NOTE: Folded package of head airbag conceals bottom rivet point.
Carefully raise folded package to expose rivet point.

Drill out rivets; refer to REPLACING BLIND RIVETS .

Remove holder for grab handles.

Courtesy of BMW OF NORTH AMERICA, INC.

Rear holder:

NOTE: Folded package of head airbag conceals bottom rivet point.
Carefully raise folded package to expose rivet point.

Drill out rivets; refer to REPLACING BLIND RIVETS .

Remove holder for grab handles.

Courtesy of BMW OF NORTH AMERICA, INC.

Deburr remaining rivets with nipper pliers.

Installation note:

Lay out possible paintwork damage on the side frame with primer.

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of the top rivet heads (1):

Press off rivet heads (1) using special tool 2 348 128 and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

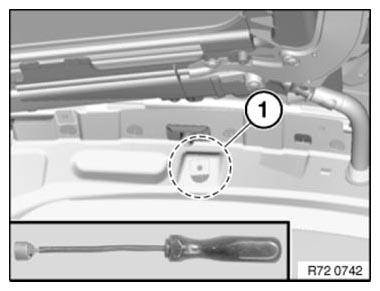

Removal of the bottom rivet heads (1):

Use special tool 72 1 200 for collecting rivet remnants.

Shank of special tool is flexible and can be adapted to the relevant body contours.

NOTE: Insert butyl in collecting tray to secure rivet remnants against falling out.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 72 1 200 through bore hole in the body underneath the attachment point.

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool from rear on rivet head in cavity.

NOTE: Make sure collecting tray is correctly fitted on rivet head.
A second person will be needed to help hold the special tool on the rivet head during the driving-out operation.
With hammer and punch drive out stem into collecting tray.
Carefully maneuver special tool out of body so that rivet head does not fall out of collecting tray.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the rivet head falls out of the collecting tray into the side frame when the special tool is fed out, this area must be generously filled with foam.
For details of procedure for filling cavities with foam, see further operations.
Use cavity foam (refer to BMW Parts Department) for foam filling.

Preparing tube for foam can:

Slide hose (1) at least 6 cm into hose (2).

Cut end of hose (1) at an angle.

Mark (3) is not required.

Fit hose to foam can.

Run hose into corresponding opening in body.

Fill cavity in an operation lasting 0.5 seconds.

WARNING: Empty foam can completely onto cardboard and after hardening dispose of foam and can in residual waste.
Can may burst if not completely emptied.
