61 12 013 Replacing negative battery lead

WARNING: Observe SAFETY INFORMATION for handling vehicle battery.
Read and comply with safety notes and notes on INTELLIGENT BATTERY SENSOR .

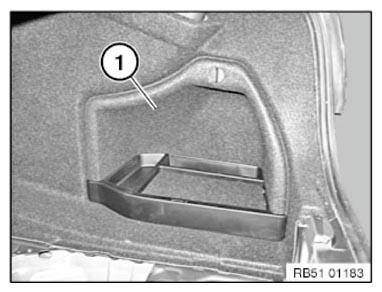

Remove flap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

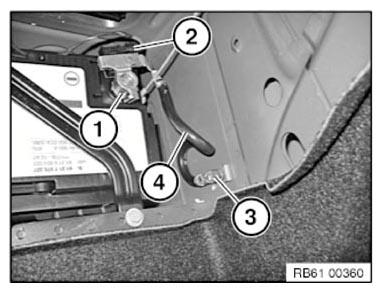

Slacken nut (1) on negative battery terminal.

Tightening torque, refer to: 61 21 1AZ .

IMPORTANT: Do not under any circumstances use force to pull off negative terminal.

Detach battery earth lead with intelligent battery sensor (IBS) in upward direction, lay to one side and secure.

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (2).

Release nut (3) and battery earth lead (4).

Tightening torque, refer to: 61 21 6AZ .
