63 99 273 Replacing bulb for turn indicator, front left

IMPORTANT: Follow instructions for handling light bulbs, refer to: (EXTERIOR LIGHTS) .

Unlock and remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

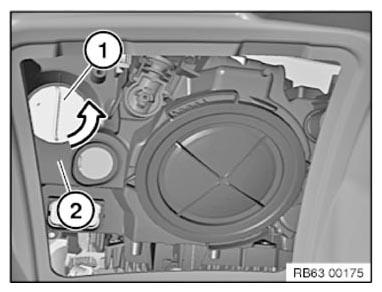

Turn bulb holder (1) in direction of arrow and remove from headlight (2).

IMPORTANT: Risk of damage due to moisture penetration!
Installation note:
Check seal. Replace bulb holder (1) if necessary.
Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .
Turn bulb holder (1) clockwise to limit position.
Bulb holder (1) must lock correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

21W version:

Pull bulb (1) in direction of arrow out of bulb holder (2).

Installation note:

Note the BULB TYPE .

Courtesy of BMW OF NORTH AMERICA, INC.

Type PY24W:

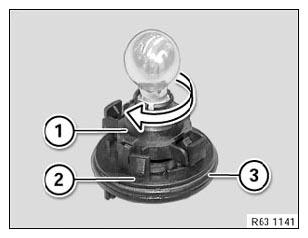

Turn bulb with socket (1) in direction of arrow and remove from bulb holder (2) toward the top.

Installation note:

Check that bulb with socket (1) and sealing ring (3) on bulb holder (2) are correctly seated.

Note the BULB TYPE .

Courtesy of BMW OF NORTH AMERICA, INC.
