65 24 017 Removing and installing/replacing right wave trap

Necessary preliminary tasks:

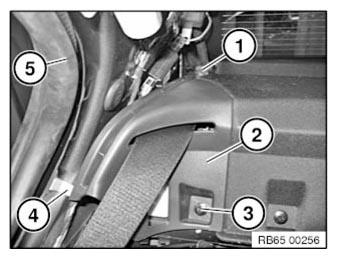

Release screw (1).

Lift out expanding rivet (3).

Remove door seal (5) as pictured.

Remove belt feed cover (2) towards front.

Installation note:

Retaining clip (4) must not be damaged or bent, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

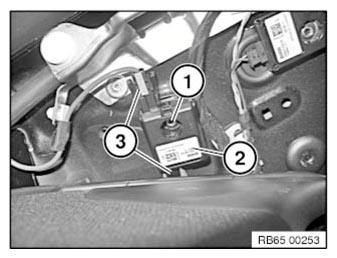

Release screw (1).

Unlock plug connections (3) and disconnect. Remove wave trap (2) from C-pillar.

Installation note:

Position wave trap (2) so that positioning pin on back engages in associated bore hole.

Courtesy of BMW OF NORTH AMERICA, INC.

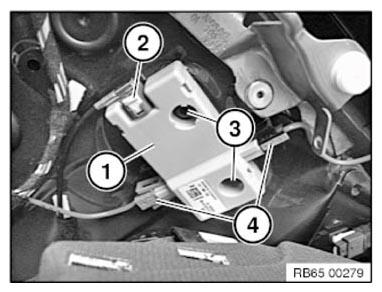

NOTE: Version with TV module :

Release screws (3).

Unlock plug connections (2) and (4) and disconnect.

Remove wave trap (1).
