61 35 240 Removing and installing (replacing) Smart Opener control unit (non-contact rear lid opening)

IMPORTANT: Read and comply with notes on protection AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION).

NOTE: Work shown on the F30 by way of example, deviations in detail are possible in other models.

Depending on the engine version:

If necessary, release screws (1) on cover (2) and remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Control unit is located on rear reinforcement of bumper panel.

Release screws (1) on bumper panel at bottom rear.

Courtesy of BMW OF NORTH AMERICA, INC.

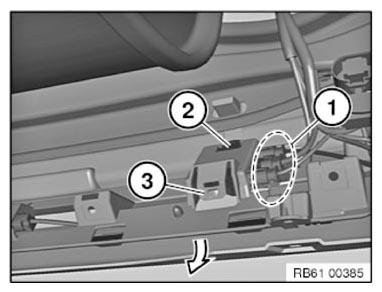

Unlock plug connections. (1) and disconnect.

Reach between reinforcement and bumper panel.

Release control unit (2) at latch mechanism (3) and feed out in direction of arrow.

Installation note:

Make sure all plug connections (1) are correctly seated.

Make sure control unit (2) is correctly seated on latch mechanism (3).

Make sure connecting lines are correctly routed.

Courtesy of BMW OF NORTH AMERICA, INC.
