REP-TAT-P-1371-02 Install charge air line

TIGHTENING TORQUES SPECIFICATION

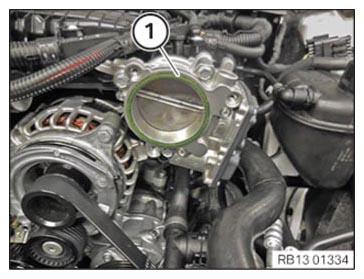

Charge air line to throttle valve
M6x30	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connector (3).
Connect and lock the connector (2).
Connect and lock the connector (1).
All connectors must audibly engage.
Connect charge air line (1) and lock.
The charge air line (1) must engage audibly.
