REP-TAT-P-1371-01 Remove charge air line

WARNING: Hot surfaces.
Risk of burning!

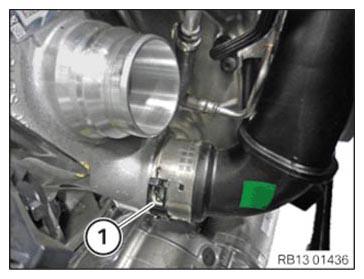

Unlock and release charge air line (1).

Courtesy of BMW OF NORTH AMERICA, INC.

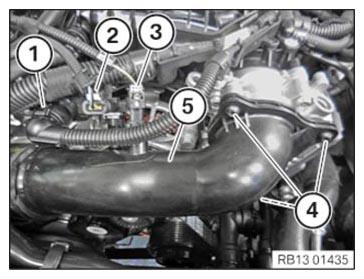

Unlock and loosen connector (1).
Unlock and loosen connector (2).
Unlock and loosen connector (3).
Loosen screws (4).
Guide out and remove charge air line (5).

Courtesy of BMW OF NORTH AMERICA, INC.
