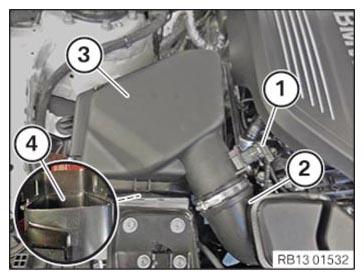

REP-TAT-P-1371-02 Installing intake silencer housing

• Thread in and install intake silencer housing (3) into the intake port (4).
• Engage the intake filter housing (3) into the rubber mount.
• Tighten clamp (2).

TIGHTENING TORQUES SPECIFICATION

Clean air pipe to intake silencer housing
Clamp	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (1) and audibly lock it.
