REP-TAT-P-1371-01 Removing intake silencer housing

Prerequisite

Ignition is switched off.

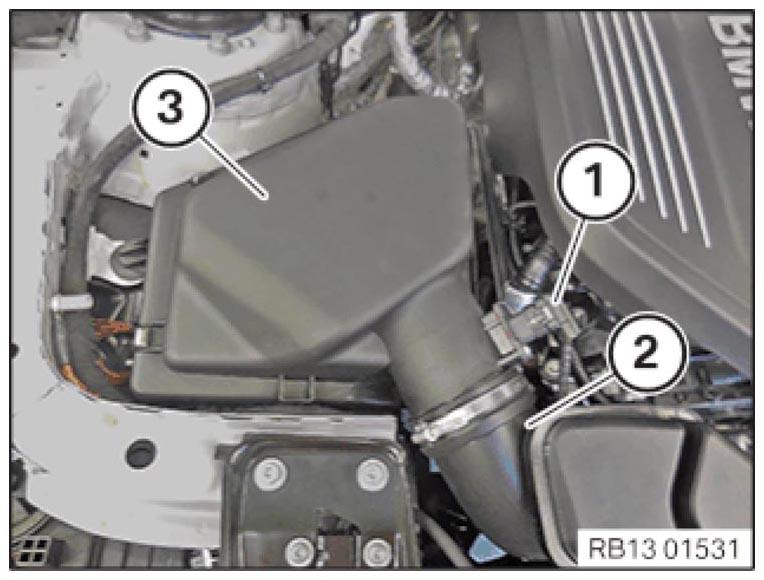

• Unlock connector (1) and pull off.
• Unfasten clamp (2).
• Pull off intake silencer housing (3) upward out of rubber mounts and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.
