11 00... Removing and installing/replacing rear acoustic cover (corrosion protection)

Necessary preliminary work:

Removal:

Thread out acoustic cover (1) to top of the guides in the marked areas.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

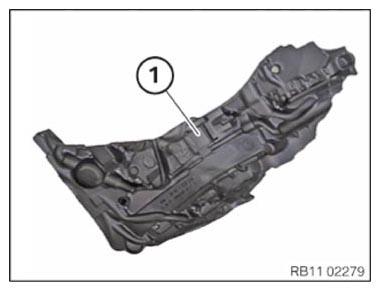

Check acoustic cover (1) for cracks and damages.

Replace faulty acoustic cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Position the acoustic cover (1).

NOTE: Pay attention to a correctly installed acoustic cover of the guides in marked areas.

Courtesy of BMW OF NORTH AMERICA, INC.
