72 12 006 Removing and installing/replacing airbag module for passenger knee protection
WARNING:
Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.
Incorrect handling can activate airbag and cause injury.
IMPORTANT:
Operations on pyrotechnical devices may only be carried out by authorized experts.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
Necessary preliminary tasks:
- Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
- Remove the LOWER INSTRUMENT PANEL TRIM
NOTE:

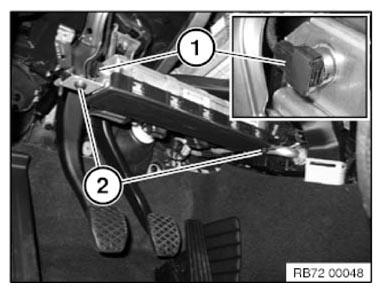

The passenger's side is identical to the driver's side shown here!
Unfasten PLUG CONNECTION (1) and disconnect.
Unfasten screws (2).
Tightening torque, refer to: 72 12 02AZ.
