11 14 295 Removing and installing/replacing oil sump acoustic cover (B48B)

Necessary preliminary work:

• Disconnect BATTERY EARTH LEAD
• Lower FRONT AXLE SUPPORT

Removal:

Release nut (1) and remove positive battery cable.

Release nut (2) and remove cables from terminal 50.

Remove cable line terminal 50 in the marked areas of the acoustic cover.

Loosen all expanding rivets.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sound insulation (1) towards rear bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install sound insulation (1) towards front upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Install sound insulation (1) and attach using the expanding rivets (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

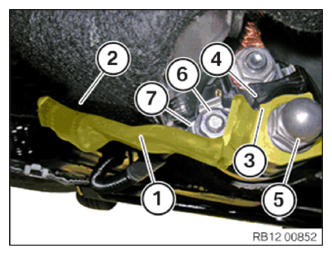

Connect positive battery cable (1) to starter motor.

Push up positive battery cable (1) up to the sound insulation (2).

Bring anti-twist safeguard (3) of the positive battery cable (1) on the starter motor to limit position (4).

Tighten nut (5).

Tightening torque 12 42 2AZ.

Insert and install clamp (7) on the starter motor.

Tighten nut (6).

Tightening torque 12 42 3AZ.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• LIFT FRONT AXLE SUPPORT AND FASTEN.
• ADD FINAL DETAILS TO VEHICLE
• CONNECT BATTERY EARTH LEAD
