52 14 040 Removing and installing/replacing outer cover on left or right front seat (normal/electric)
Move backrest to full rearward position.
Grip end fitting cover centrally between seat belt strap and cover.
Unclip end fitting cover in direction of arrow.
Installation note:
Install end fitting cover as follows:
- Insert cover with rear guide in covering.
- Insert cover in direction of arrow downwards in covering
- Engage top left of cover in covering.

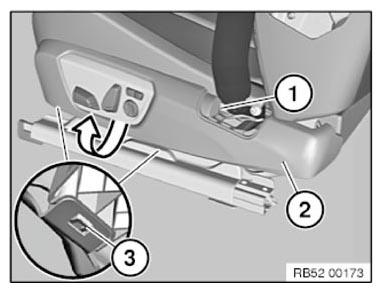

Release screw (1).
Lever latch mechanism (3) of the cover (2) out of seat mechanism.
Remove cover (2) in direction of arrow from seat mechanism.
Unlock and disconnect plug connections behind from operating unit.
Installation note:
Cover must not be damaged.
Replace cover if necessary.
Replacement only:
Remove the OPERATING UNIT for seat adjustment from cover.
