63 21 030 Removing and installing/replacing left socket housing for rear light (on side wall)
WARNING:
Follow instructions for handling light bulbs, refer to: (EXTERIOR LIGHTS) .
Necessary preliminary tasks:
- Remove the REAR LIGHT

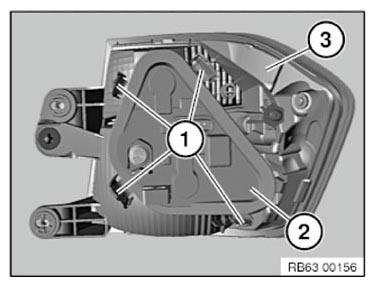

Release catches (1).
Remove socket housing (2) from rear light (3).
Installation note:
Catches (1) must not be damaged or missing.
Make sure socket housing (2) is correctly seated on rear light (3).
Installation note:
Seal (3) on socket housing (2) must not be missing or damaged.
Replacement:

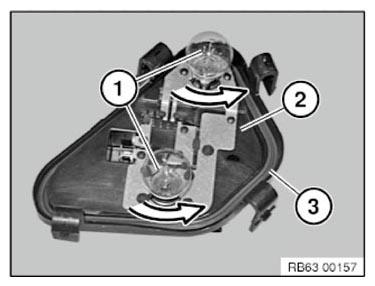

Carefully press down bulb (1), turn in direction of arrow and remove from socket housing (2).
Note the BULB TYPE .
