31 12 050 Removing and installing/replacing left or right trailing link

Necessary preliminary tasks:

• Remove the FRONT WHEEL .

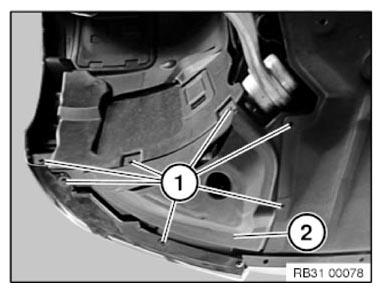

Release screws (1).

Remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

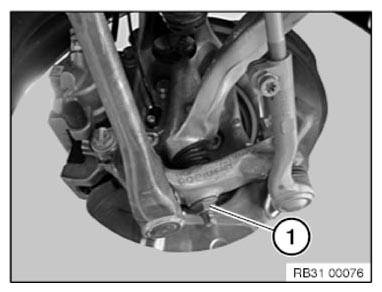

Release nut (1), if necessary, grip at inner Torx socket.

Tightening torque, refer to: 31 12 2AZ .

Installation note:

Replace self-locking nut.

Keep trailing link to swivel bearing connection clean and free from oil and grease.

Courtesy of BMW OF NORTH AMERICA, INC.

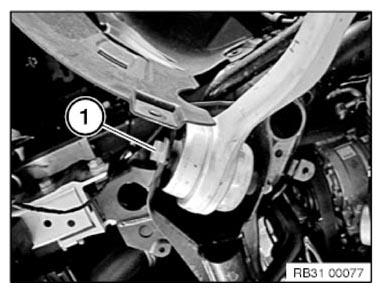

Release screw (1).

Tightening torque, refer to: 31 12 1AZ .

Remove tension strut.

Installation note:

Replace screw (1).

Tighten down SCREW CONNECTION IN NORMAL POSITION .

Courtesy of BMW OF NORTH AMERICA, INC.
