33 32 091 Replacing a control arm
Necessary preliminary tasks:
- Remove the REAR WHEEL .
- Remove the CAMBER ARM COVER .

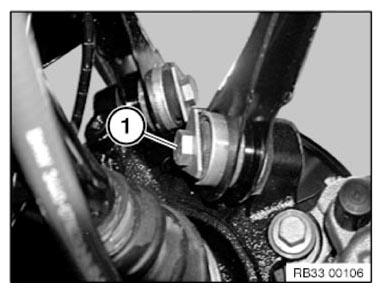

Release screw (1).
Installation note:
Observe installation sequence at the end of service information !
Manually lift wheel carrier in region of brake caliper if necessary.
Replace screw.

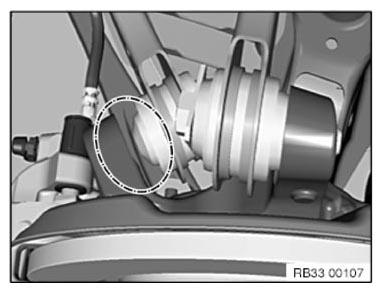

IMPORTANT:
Make sure during installation that in the connection area to the wheel carrier the tapered end of the bearing bushing (of the rubber mount) points in the direction of the wheel carrier.

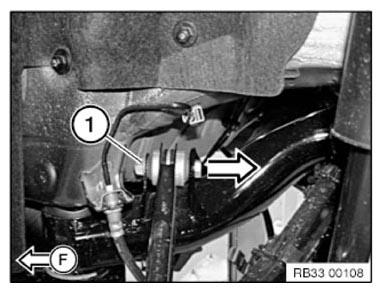

Slacken nut (1).
Installation note:
Observe installation sequence at the end of service information !
Screw head faces away from direction of travel.
Replace self-locking nut.
IMPORTANT:
You must observe the installation sequence and installation notes!
IMPORTANT:
Failure to comply with these instructions may result in serious damage to the threads of the wheel carrier!
IMPORTANT:
Do not use an impact screwdriver!
IMPORTANT:
Installation sequence:
Put on screw (1) wishbone to wheel carrier manually!
- Put on screw (1) wishbone to wheel carrier manually!
- Fit control arm to rear axle support, insert screw and screw on nutIMPORTANT: Tighten both screw connections in normal position only
- Tighten screw connection control arm to wheel carrier
Tightening torque, refer to: 33 32 4AZ
- Tighten screw connection control arm to rear axle support
Tightening torque, refer to: 33 32 3AZ .
Put on screw (1) wishbone to wheel carrier manually!
