35 31 050 Removing and installing/replacing over-center helper spring

Necessary preliminary tasks:

• Remove the TRIM PANEL FOR PEDAL MECHANISM .

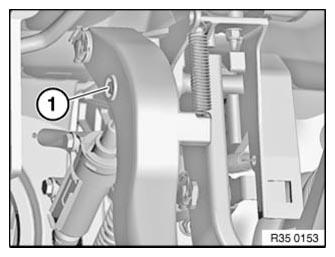

Press bolt end (1) together with offset pliers and press out pin.

Courtesy of BMW OF NORTH AMERICA, INC.

Push in bolt (1) fully in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach clamps (1).

Installation note:

Check clamps, replace if necessary.

Retainers must lie with both shanks in the groove and snap audibly into place.

Slide out bolt (2).

Installation note:

Lightly grease bolt.

Remove over-center helper spring (3).

Courtesy of BMW OF NORTH AMERICA, INC.

There are two versions:

1. Over-center helper spring
2. Reinforced over-center helper spring

Assembly of over-center helper spring:

• Secure black holder (1) to clutch pedal
• Smaller coil spacing of spring (2) points to black holder (1)
• Secure grey holder (3) to bearing support

Lightly grease holder and spring contact surfaces.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Secure over-center helper spring first with black holder to clutch pedal.

Gently press over-center helper spring together and secure with grey holder to bearing support.

Connect clutch pedal to clutch master cylinder.

When replacing reinforced over-center helper spring:

Remove retaining clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.
