35 31 041 Replacing spring for clutch pedal

Necessary preliminary tasks:

Remove the TRIM PANEL FOR PEDAL MECHANISM .

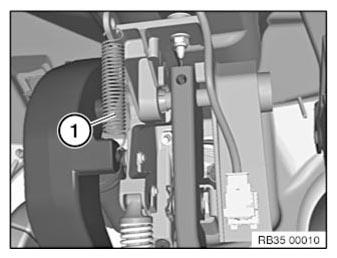

Disconnect return spring (1).

G12844953

Courtesy of BMW OF NORTH AMERICA, INC.
