35 31 000 Removing and installing or replacing clutch pedal

Necessary preliminary tasks:

• Remove the TRIM PANEL FOR PEDAL MECHANISM for foot levers.
• If necessary, remove the OVER-CENTER HELPER SPRING.
• If applicable, detach the air duct for footwell ventilation and push it up.

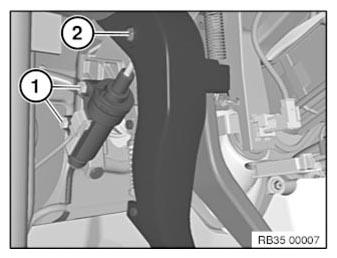

Push the locking bolts (2) out.

Installation note:

Replace the locking bolts (2).

Courtesy of BMW OF NORTH AMERICA, INC.

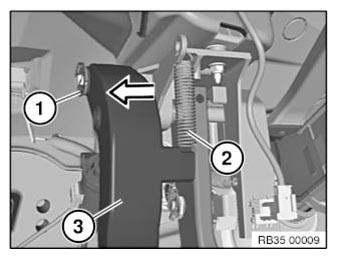

Detach retaining clip (1).

Unhinge the recoil spring (2).

Pull the clutch foot levers (3) off the bearing support.

Installation note:

Replace retaining clip (1).

Locking clip (1) must be seated with both legs in the pin groove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

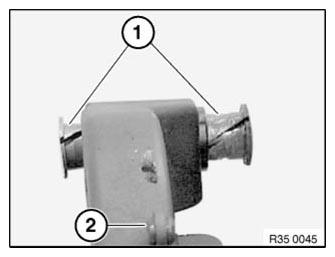

Check bearing bushings (1) and replace if necessary.

Lightly grease bearing bushings (1).

Courtesy of BMW OF NORTH AMERICA, INC.
