5145-01 Removing the bottom left instrument panel trim

NOTE: RISK OF DAMAGE
Scratches.
Tools and sharp-edged components can cause scratches.

• Protect working area.
• Handle tools and components carefully.

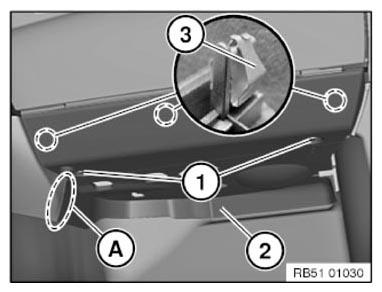

• Loosen screw connections (1).
• Loosen the instrument panel trim (2) using the clips (3) and remove towards the bottom in this area (A).
• Slightly lower the instrument panel trim (2) and disconnect the plug connection behind it.
• Remove the instrument panel trim (2) and put to one side.
