65 50 030 Removing and installing/replacing TV module

Necessary preliminary tasks:

• Disconnect the BATTERY EARTH LEAD
• Partially remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT

Unscrew nut (1) and bolts (2).

Take off holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

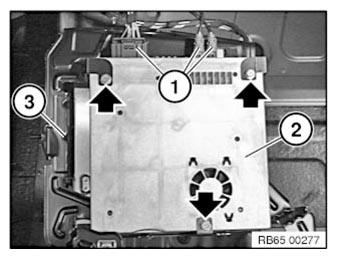

Unlock plug connections (1) and disconnect.

Release screws at marked points.

Remove TV module (2) from holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.
