61 31 221 Removing and installing/replacing both multifunction steering wheel switches
Necessary preliminary tasks:
- Remove the AIRBAG UNIT
Release screws (1) on left/right on back of steering wheel (2).

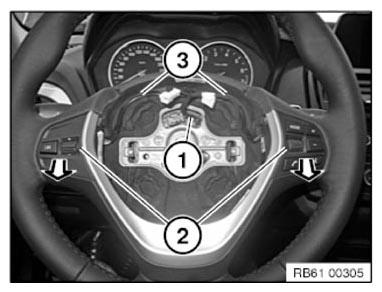

Disconnect plug connection (1).
Remove both multifunction steering wheel switches (2) together with cover from steering wheel in direction of arrow.
Installation note:
Make sure multifunction steering wheel switch (2) is fitted correctly.
Make sure electrical wiring (3) is correctly routed.

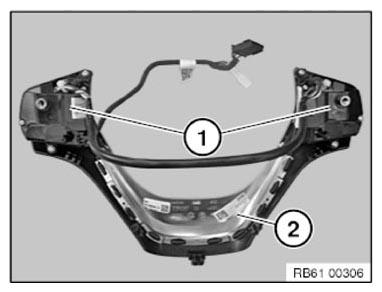

Remove switch of multifunction steering wheel (1) from cover (2).
Installation note:
Make sure electrical wiring is correctly routed.
