51 45... Removing and installing/replacing side panel on dashboard on left or right

Special tools required:

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Pull off seal (1) in the area of the side panel (2).

Unclip side panel from dashboard (2) in direction of arrow with special tool 00 9 327 and feed out at a slant to the rear.

If necessary, unlock plug connection on switch for front passenger airbag deactivation and unplug.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) and guide tab (2) on side panel (3) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement with switch for front passenger airbag deactivation:

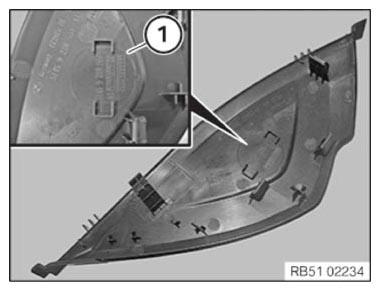

Saw out inside mark (1) with 25 mm dia. jigsaw.

Mill off remnants up to mark (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
