61 35 245 Removing and installing (replacing) Smart Opener bottom sensor line (non-contact rear lid opening)

IMPORTANT: Read and comply with notes on protection AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION).

NOTE: Work shown on the F30 by way of example, deviations in detail are possible in other models.

Depending on the engine version:

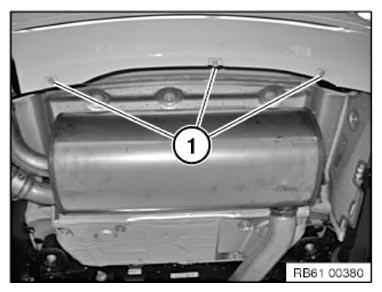

If necessary, release screws (1) on cover (2) and remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Control unit and sensor strip are located on reinforcement of rear bumper panel.

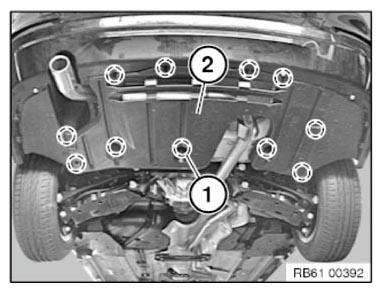

Release screws (1) on bumper panel at bottom rear.

Courtesy of BMW OF NORTH AMERICA, INC.

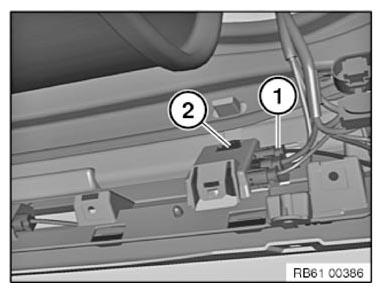

Unlock associated plug connection (1) on control unit (2) and disconnect.

Installation note:

Make sure plug connection (1) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown with bumper panel removed for purposes of clarity.

IMPORTANT: Risk of damage, do not kink sensor line!

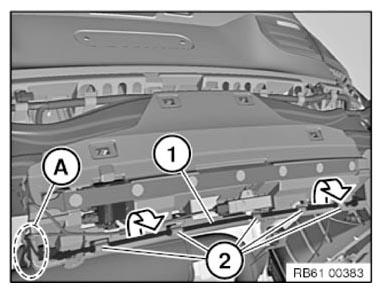

Feed out associated connecting line in area (A).

Reach between reinforcement and bumper panel.

Release sensor line (1) from holder (2) in direction of arrow and feed out.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure sensor line (1) is correctly fitted.

Holders (2) must not be missing or damaged.

Make sure connecting line is correctly laid.
