61 31 038 Removing and installing/replacing switch for front passenger airbag deactivation

Special tools required:

00 9 323

WARNING: Read and comply with safety regulations for handling airbag modules and pyrotechnical belt tensioners. Refer to: SAFETY REGULATIONS
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

Disconnect the BATTERY EARTH LEAD

NOTE: Work shown on the F20 by way of example, deviations in detail are possible in other models.

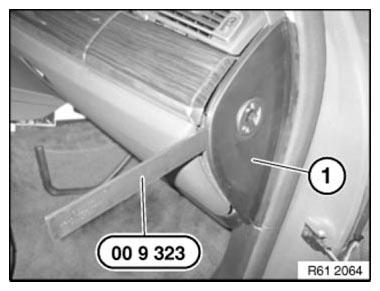

Carefully lever out side cover (1) with special tool 00 9 323.

Courtesy of BMW OF NORTH AMERICA, INC.

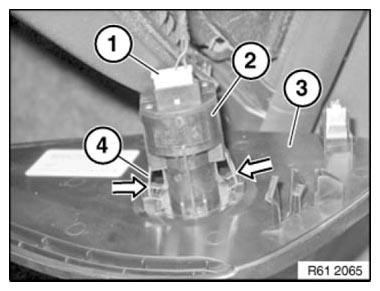

Disconnect plug connection (1).

Unlock latch mechanisms (4) in direction of arrow.

Feed switch for front passenger airbag deactivation (2) out of side cover (3).

Installation note:

Make sure switch for passenger airbag deactivation (2) is correctly seated in side cover (3).

Courtesy of BMW OF NORTH AMERICA, INC.
