31 35 005 Removing and installing anti-roll bar link for left or right anti-roll bar
Risk of damage!
- Avoid bending the head of the anti-roll bar during assembly!
- An impact screwdriver must not be used!
Necessary preliminary tasks:
- Remove the FRONT WHEEL .
IMPORTANT:

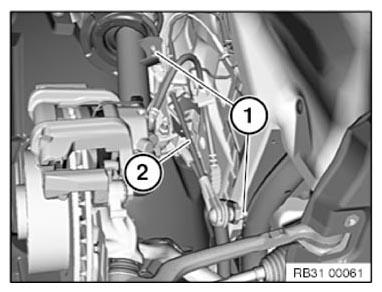

It is important to counterhold Torx socket when loosening push rod screw connection (1).
Unscrew nuts (1).
Tightening torque, refer to: 31 35 2AZ .
Remove anti-roll bar link (2).
Installation note:
Replace self-locking nuts.
