Replacing front ride height sensor
WARNING:
High-voltage system - danger to life
- Observe SAFETY INFORMATION for handling electric vehicles.
IMPORTANT:
Read and comply with NOTES ON ESD PROTECTION
.

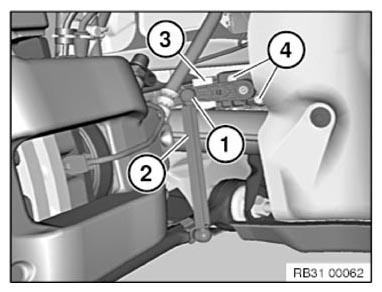

Slacken nut (1).
Tightening torque 37 14 4AZ .
Detach jointed rod (2).
Disconnect plug connection (3).
Release screws (4).
Tightening torque 37 14 2AZ .
Remove ride height sensor to front.
Installation note:
Replace nut (1).
Sensor lever points in direction of travel starting from ride height sensor.
After installation:
- Check headlight adjustment, correct if necessary.
