Remove electric A/C compressor
WARNING:
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
NOTE:
TECHNICAL INFORMATION
With the ignition off and the high-voltage safety plug disconnected, the Check Control message "High voltage system faulty" is displayed by default.
The message "High-voltage system switched off" (absence of voltage) is only displayed when the ignition is switched on.
With the ignition off and the high-voltage safety plug disconnected, the Check Control message "High voltage system faulty" is displayed by default.
The message "High-voltage system switched off" (absence of voltage) is only displayed when the ignition is switched on.
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE FLAP IN THE RIGHT-HAND LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to DE-ENERGIZING THE HIGH-VOLTAGE SYSTEM .
- Refer to CHECKING THAT NO VOLTAGE IS APPLIED .
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE .
- Refer to REMOVING THE VEHICLE ELECTRICAL SYSTEM SUPPORT BATTERY .
- Refer to REMOVING BATTERY HOUSING (ENGINE COMPARTMENT) .
- Refer to REMOVING CONTROL UNIT HOLDER .
- Refer to DRAINING THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM .
- Refer to REMOVING ELECTRICAL HEATING .

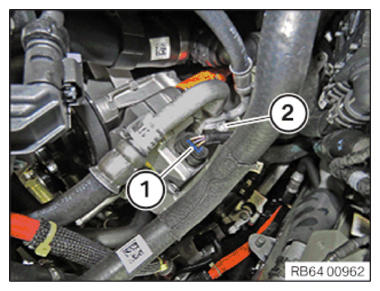

- Unlock and disconnect connector (1).
- Loosen the screw (2) and remove associated the refrigerant line.

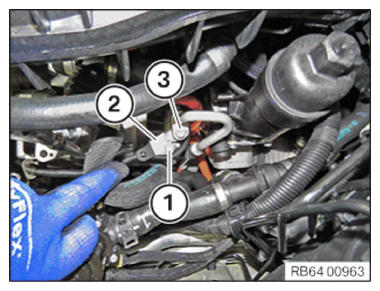

- Unscrew the bolt (1) and set the holder (2) aside.
- Loosen the screw (3) and remove associated the refrigerant line.

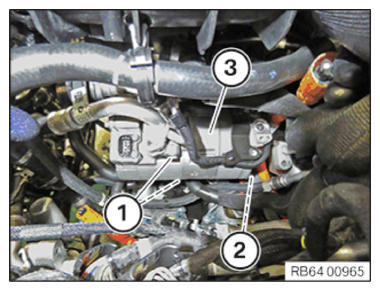

- Loosen screws (1) and (2).
- Remove electric A/C compressor (3).
