Partially Remove Acoustic Cover Of Oil Sump

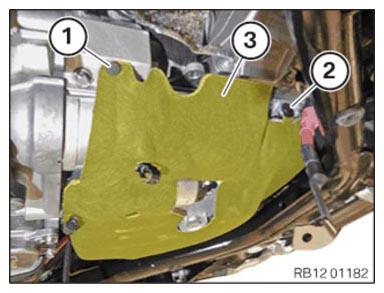

Insert and install the acoustic cover of the oil sump (3).
Secure the clamp (1).
Connect and lock the clamp (2).
The clamp (2) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

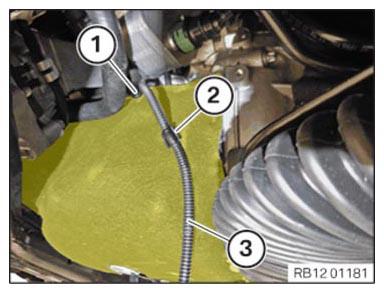

Insert and install cable (3).
Attach and lock the clamp (2).
Attach and lock the clamp (1).
All clamps must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

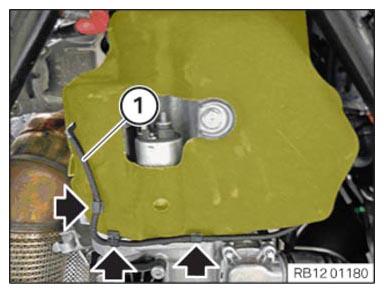

Insert and install cable (1).
Fix and lock the clamps (arrows).
All clamps must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

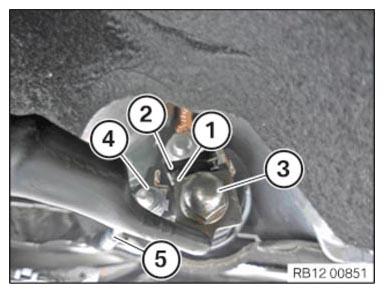

Connect cable (5) to the starter motor.

Tighten nut (4).

TIGHTENING TORQUE SPECIFICATION

Terminal 50 to starter motor
M6	Tightening torque	7 Nm

Insert and install the positive battery cable at the starter motor.
Install the anti-twist lock (1) of the positive battery cable to the starter motor up to the limit position (2).

Tighten nut (3).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATION

Battery positive lead to starter
M8	Tightening torque	13.5 Nm

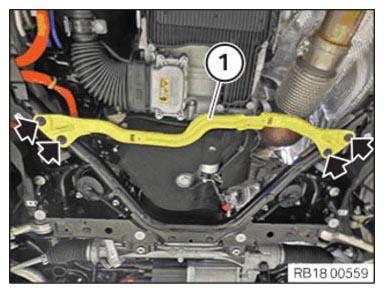

TIGHTENING TORQUE SPECIFICATION

Connecting rod on front axle support
Screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
