Installing The Underbody Panelling On The Sides

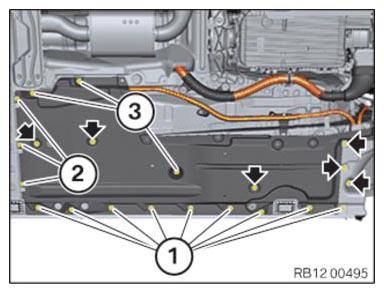

- Guide side underbody panelling into the rear underbody panelling and under the wheel arch trim panel.
- Tighten nuts (3).TIGHTENING TORQUE SPECIFICATION
Underbody protection/underbody planking/heat insulation Screw not metric thread Tightening torque 3 Nm Screw M6 Tightening torque 8.8 Nm Nut Tightening torque 2.5 Nm - Secure expanding rivet (2).
- Press in securing pin (1).
- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATION
| Underbody protection/underbody planking/heat insulation | ||
| Screw not metric thread | Tightening torque | 3 Nm |
| Screw M6 | Tightening torque | 8.8 Nm |
| Nut | Tightening torque | 2.5 Nm |
