Installing The Cylinder Head On The Special Tool

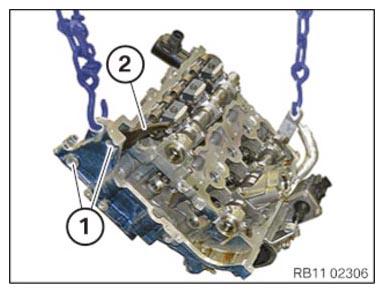

• Loosen the bearing journals (1).
• Remove the guide rail (2) towards the top.
  NOTE: Figure B38-engine.

  Courtesy of BMW OF NORTH AMERICA, INC.

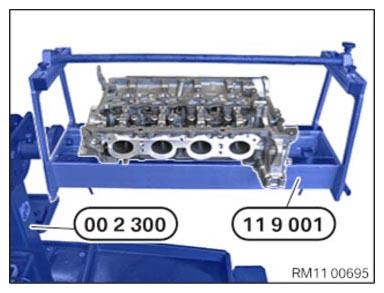

• Mount and bolt the cylinder head to the special tool 0 494 362 (11 9 000).

Courtesy of BMW OF NORTH AMERICA, INC.
