Installing The Cover In The Engine Compartment On The Right

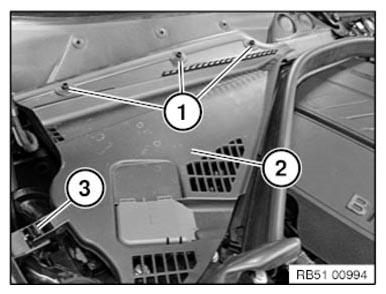

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

• Position the cover (2).
• Lock latch mechanism (3).
• Attach the mounting elements (1).

Courtesy of BMW OF NORTH AMERICA, INC.
