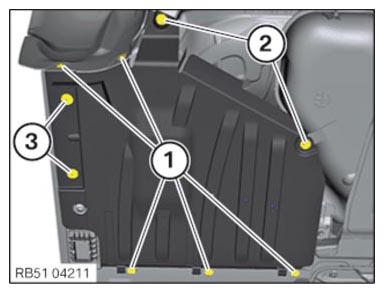

Install The Underbody Panelling On The Rear Side
- Position the underbody panelling.
- Press in securing pin (3).
- Tighten the screws (2).TIGHTENING TORQUE SPECIFICATION
Underbody protection/underbody planking/heat insulation Screw not metric thread Tightening torque 3 Nm Screw M6 Tightening torque 8.8 Nm Nut Tightening torque 2.5 Nm - Install the expanding rivet (1).
