Connect The Coolant Lines For The Low-Temperature Coolant Circuit

NOTE: TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.

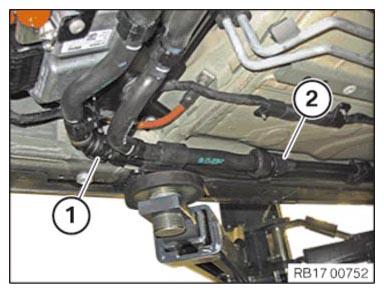

• Connect and lock coolant line (1).
• Connect and lock coolant line (2).

  All coolant lines must audibly engage.

• Secure coolant lines (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.
