Checking/Adjusting The Angle Of Attack Of A Wiper Arm To The Windshield

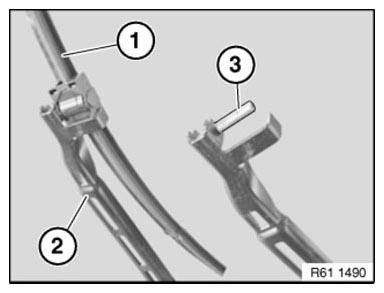

Remove the wiper blade (1) from the wiper arm (2).
The tappet (3) of the wiper arm (2) is the mounting for special tool.

Courtesy of BMW OF NORTH AMERICA, INC.

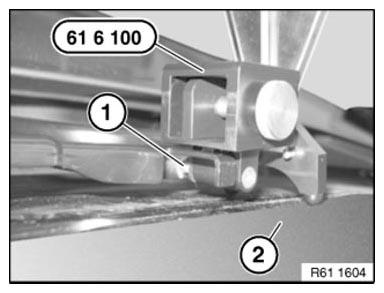

Push special tool 0 495 346 (61 6 100) onto the tappet (1).
Position the special tool 0 495 346 (61 6 100) on the windshield (2) and read the value from the scale.
The angle of attack is read off for left-hand drive vehicles in the range from 0° to -10° and for right-hand drive vehicles in the range from 0° to +10° on the scale.

Courtesy of BMW OF NORTH AMERICA, INC.

Read off the angle of attack from the scale on the special tool and compare with the setpoint value.

Courtesy of BMW OF NORTH AMERICA, INC.

TECHNICAL DATA SPECIFICATION

Angle of attack, wiper arm
Angle of attack identical on the driver's side and the passenger's side.	Angle of attack	5 ⁺³_-3 °
Courtesy of BMW OF NORTH AMERICA, INC.

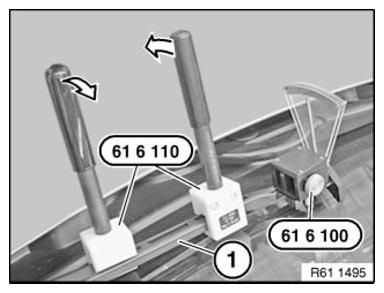

In the case of deviations of the angle of attack read off on the scale to that from the setpoint value, correct the wiper arm (1) using special tools 0 495 457 (61 6 110) in the arrow direction.
