Checking The Position Of The Intake Camshaft (Cylinder Head Removed)

Check

• Check position of the intake camshaft on the respective cylinders.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

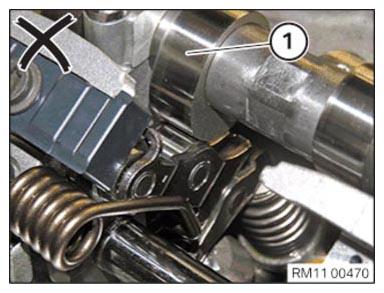

» Cam (1) of the intake camshaft runs on the intermediate lever.

Measure

• Continue to crank the intake camshaft on the mounting flats.
