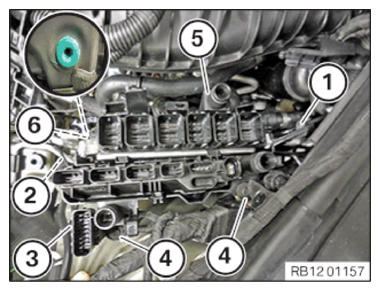

Install control unit holder

• Thread the control unit holder (5) into the rubber mount (6) and install.
• Tighten down screws (4).
• Connect and lock the connector (3).

  The connector (3) must engage audibly.

• Secure clamps (2).
• Secure the fuel line (1) to the control unit holder (5).

  Courtesy of BMW OF NORTH AMERICA, INC.

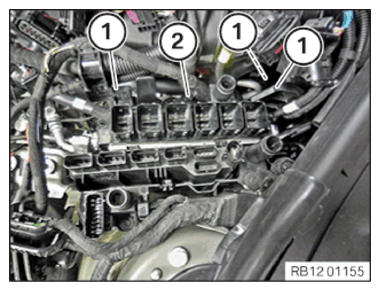

• Connect and lock the holder (1).

  Brackets (1) must engage audibly.

• Secure clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

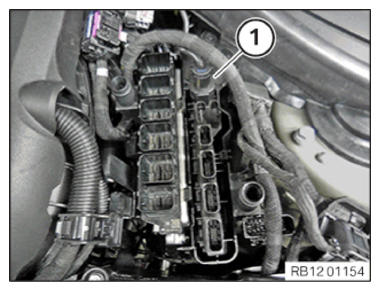

• Connect and lock the connector (1).

  The connector (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

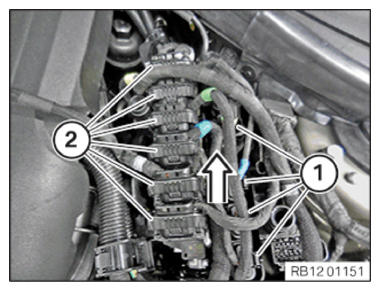

• Connect and lock all connectors (1).

  Connect and lock all connectors (2) in the direction of the arrow.

• All connectors must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

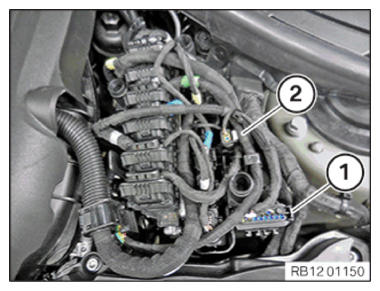

• Connect and lock the connector (2).
• Connect and lock the connector (1).

  All connectors must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

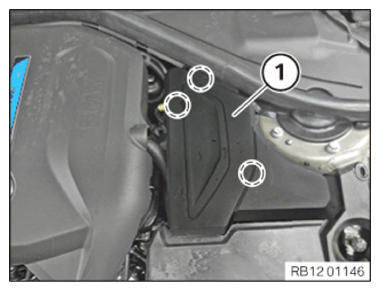

• Clip in the cover (1) into the holders in the indicated areas.

  The cover (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING BATTERY HOUSING (ENGINE COMPARTMENT) .
• Refer to INSTALLING AUXILIARY BATTERY (ENGINE COMPARTMENT) .
• Refer to CONNECTING NEGATIVE BATTERY CABLE (ENGINE COMPARTMENT) .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to CONNECTING THE NEGATIVE BATTERY CABLE .
• Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
• Refer to INSTALLING THE FLAP IN THE RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
