Overview of handbrake

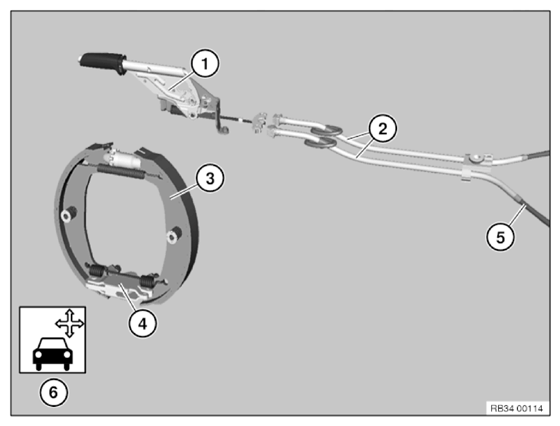

G14550743Courtesy of BMW OF NORTH AMERICA, INC.
  1. HANDBRAKE LEVER .
  2. GUIDE TUBE .
  3. HANDBRAKE SHOES .
  4. BRAKE SHOE EXPANDER .
  5. HANDBRAKE BOWDEN CABLES .
  6. ADJUSTING HANDBRAKE .
