Overview of rear brake

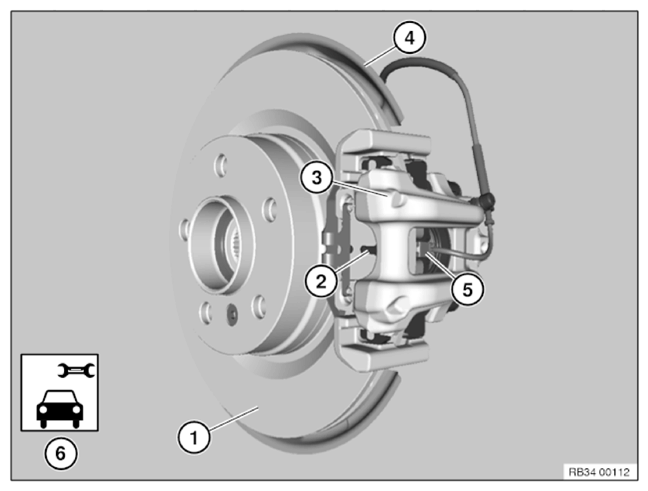

G13831372Courtesy of BMW OF NORTH AMERICA, INC.
  1. Brake Disc. Refer to PRECISION-TURNING BOTH REAR BRAKE DISCS ON BOTH SIDES  or REMOVING AND INSTALLING/REPLACING BOTH BRAKE DISCS .
  2. Brake Pad. Refer to REMOVING AND INSTALLING/REPLACING BOTH REAR BRAKE PADS OF DISC BRAKE  or REMOVING AND INSTALLING/REPLACING BRAKE PADS ON BOTH REAR DISC BRAKES (BREMBO) .
  3. BRAKE CALIPER .
  4. BRAKE GUARD PLATE .
  5. BRAKE PAD WEAR SENSOR .
  6. CHECKING BRAKE PAD THICKNESS .
