Overview of front brake

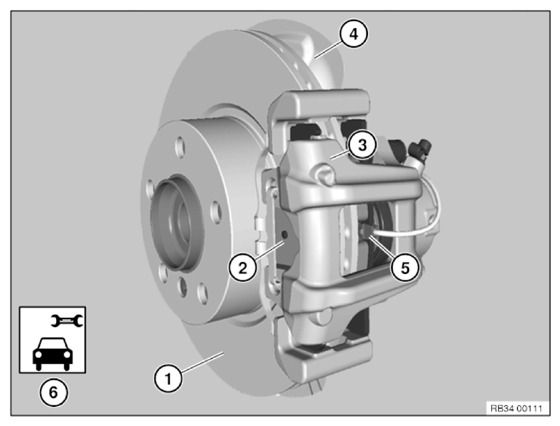

G14550635Courtesy of BMW OF NORTH AMERICA, INC.
  1. Brake Disc. Refer to REMOVING AND INSTALLING/REPLACING BOTH FRONT BRAKE DISCS  or REMOVING AND INSTALLING/REPLACING BOTH FRONT BRAKE DISCS (BREMBO) .
  2. Brake Pad. Refer to REMOVING AND INSTALLING/REPLACING BRAKE PADS ON BOTH FRONT DISC BRAKES  or REMOVING AND INSTALLING/REPLACING BRAKE PADS ON BOTH FRONT DISC BRAKES (BREMBO) .
  3. BRAKE CALIPER .
  4. BRAKE GUARD PLATE .
  5. BRAKE PAD WEAR SENSOR .
  6. CHECKING BRAKE PAD THICKNESS .
