Installing the integrated supply module (PDM)

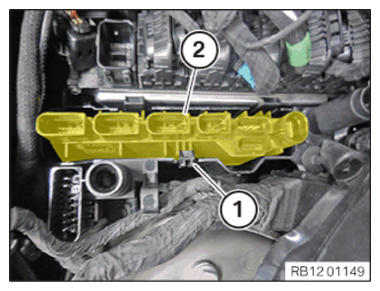

• Insert and install the integrated supply module (PDM) (2).

  The lock (1) must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

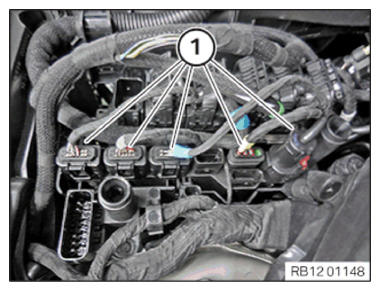

• Connect and lock all connectors (1).

  All connectors (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

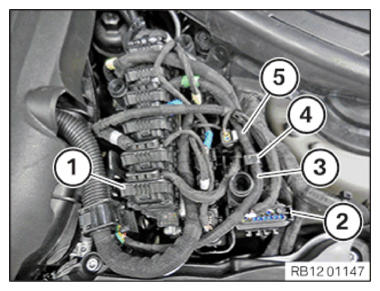

• Secure the wiring harness (3) on the holder (4).
• Connect and lock the connector (1).
• Connect and lock the connector (2).
• Connect and lock the connector (5).

  All connectors must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the cover (1) into the holders in the indicated areas.

  The cover (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CONNECTING NEGATIVE BATTERY CABLE (ENGINE COMPARTMENT) .
• Refer to CONNECTING THE NEGATIVE BATTERY CABLE .
• Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
• Refer to INSTALLING THE FLAP IN THE RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
