Remove the wiring harness section for sensor system 2
WARNING:
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
NOTE:
TECHNICAL INFORMATION
With the ignition off and the high-voltage safety plug disconnected, the Check Control message "High voltage system faulty" is displayed by default.
The message "High-voltage system switched off" (absence of voltage) is only displayed when the ignition is switched on.
With the ignition off and the high-voltage safety plug disconnected, the Check Control message "High voltage system faulty" is displayed by default.
The message "High-voltage system switched off" (absence of voltage) is only displayed when the ignition is switched on.
Preliminary work
- Refer to REMOVING THE FLAP IN THE RIGHT-HAND LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to DE-ENERGIZING THE HIGH-VOLTAGE SYSTEM .
- Refer to CHECKING THAT NO VOLTAGE IS APPLIED .
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE .
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE VEHICLE BATTERY .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING DESIGN COVER .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING THE RIGHT COVER IN THE ENGINE COMPARTMENT .
- Refer to REMOVING THE COVER IN THE LEFT ENGINE COMPARTMENT .
- Refer to REMOVING TRAILING LINK AT TENSION STRUT TOWER .
- Refer to REMOVING THE SOUND INSULATION ON THE BULKHEAD UPPER PART AT THE CENTER .
- Refer to REMOVING CORROSION PROTECTION COVER .
NOTE:
RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
- Do not pull on wires when disconnecting connectors and plug connections.
Remove the left wiring harness section for sensor system 2

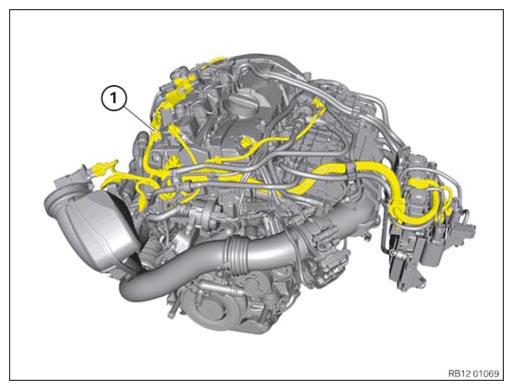

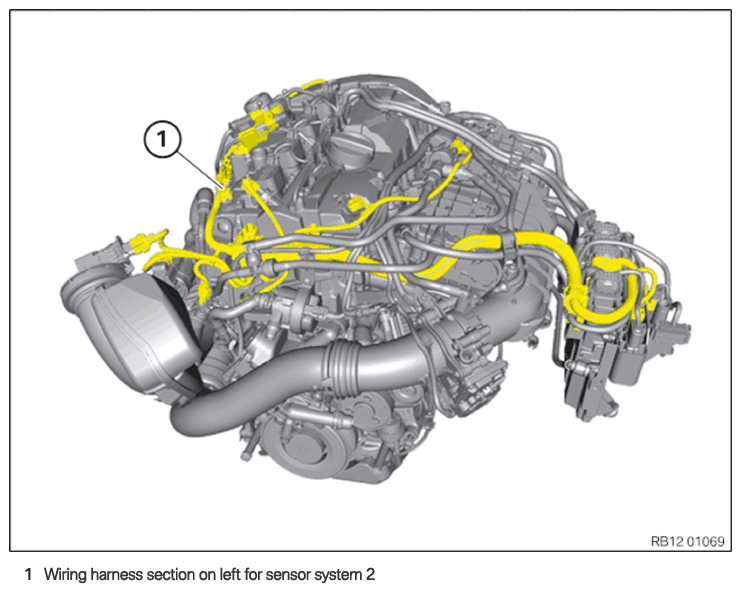

Wiring harness section on left for sensor system 2
- Unclip the cover (1) in the marked areas toward the top from the holders.
- Unlock and loosen all connectors (1) in the direction of the arrow.
- Unlock and loosen connector (2).
- Unlock and loosen connector (3).
- Unlock and loosen the cable clip (4).
- Unlock and loosen the cable clip (5).
- Guide out the wiring harness section for sensor system 2 (6) and place to one side.

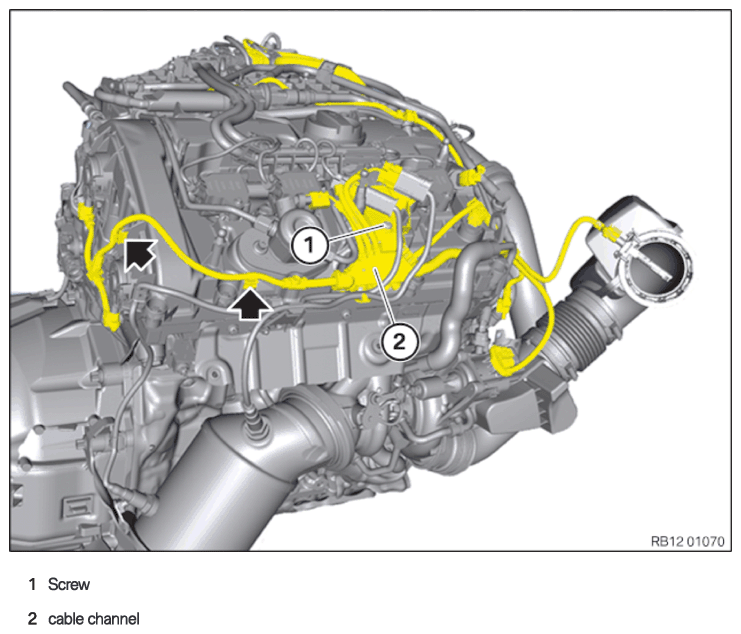

- Unlock and loosen clamp (1).
- Unlock the locks (arrows).
- Feed out cable channel (2) and set it aside.
- Unlock and detach the connector of the temperature sensor at the cylinder head.
- Unlock and detach the connector of the tank vent valve.
- Unlock and loosen the connector of the heat management module.
- Unlock and detach the connector of the intake camshaft sensor.
Removing right wiring harness section for sensor system 2
Wiring harness section on right for sensor system 2

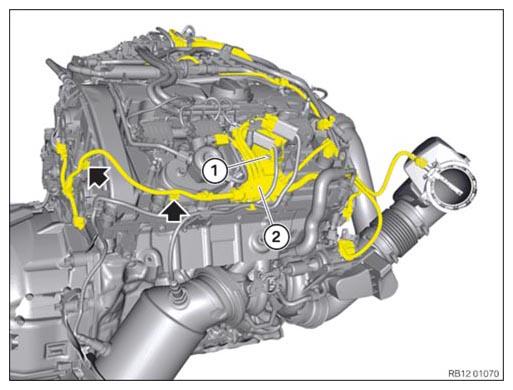

- Release the clamps (arrows).
- Loosen screw (1).
- Feed out cable duct (2) and set it aside.
- Unlock and detach the rail pressure sensor connector on the high-pressure rail.
- Unlock and detach the camshaft position sensor connector of the exhaust camshaft.
- Unlock and detach the connector of the hot film air mass meter.
- Unlock and detach the connector on the clean air pipe at the bottom.
- Unlock and detach the heating element connector for the air duct.
- Unlock and detach the exhaust turbocharger connector.
- Unlock and detach the high pressure pump connector.
- Unlock and detach the connector of the monitoring oxygen sensor.
- Unlock and detach the connector of the Lambda oxygen sensor.
- Unlock and detach the connectors from both solenoid valves for the camshaft adjustment.
