Installing positive battery cable between starter motor and engine compartment vehicle battery
CAUTION:
Improper routing of the positive battery cable.
Risk of short circuits!
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.

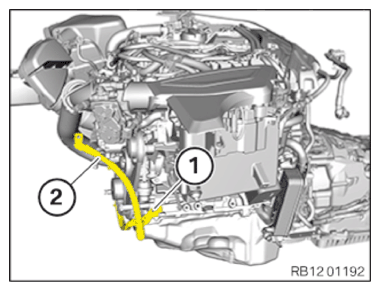

- Insert and install the positive battery cable (2).
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Positive battery cable to crankcase | |
|---|---|
| M6 | 11 Nm |

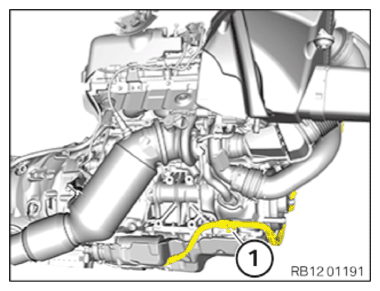

- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Positive battery cable to crankcase | |
|---|---|
| M6 | 11 Nm |
- Connect cable (5) to the starter motor.
- Tighten nut (4).
TIGHTENING TORQUE SPECIFICATIONS
| Terminal 50 to starter motor | ||
|---|---|---|
| M6 | Tightening torque | 7 Nm |
- Insert and install the positive battery cable at the starter motor.
- Install the anti-twist lock (1) of the positive battery cable to the starter motor up to the limit position (2).
- Tighten nut (3).
TIGHTENING TORQUE SPECIFICATIONS
| Battery positive lead to starter | ||
|---|---|---|
| M8 | Tightening torque | 13.5 Nm |

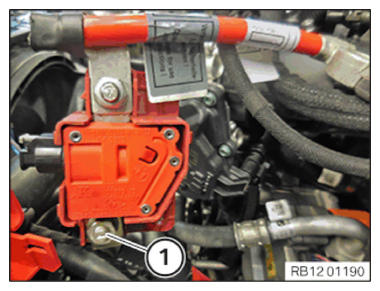

- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Battery positive lead to battery positive terminal | |
|---|---|
| M8 | 16 Nm |

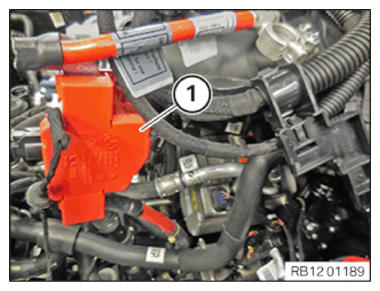

- Guide in and install cover (1).
The cover (1) must engage audibly.
Follow-up work
- Refer to INSTALLING BATTERY HOUSING (ENGINE COMPARTMENT) .
- Refer to INSTALLING AUXILIARY BATTERY (ENGINE COMPARTMENT) .
- Refer to CONNECTING NEGATIVE BATTERY CABLE (ENGINE COMPARTMENT) .
- Refer to CONNECTING THE NEGATIVE BATTERY CABLE .
- Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
- Refer to INSTALLING THE FLAP IN THE RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
