Removing holder for electrical machine electronics (EME)

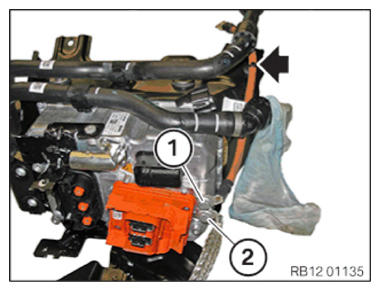

• Loosen screw (1).
• Unclip and remove battery earth lead.
• Unscrew the bolt (2) and remove the equipotential bonding line.

  Courtesy of BMW OF NORTH AMERICA, INC.

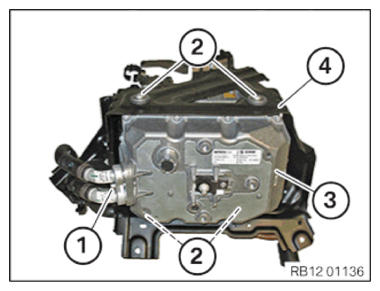

• Loosen the screw (1) and remove the coolant lines.
• Loosen screws (2).
• Guide electrical machine electronics (3) out of holder (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

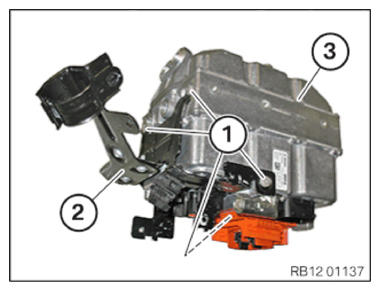

• Loosen screws (1).
• Remove holder (2) from electrical machine electronics (3).

Courtesy of BMW OF NORTH AMERICA, INC.
