Installing the DME control unit

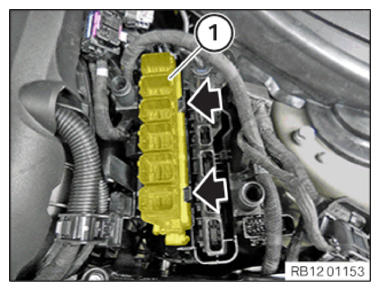

- Feed in and install DME control unit (1).
The locks (arrows) must engage audibly.

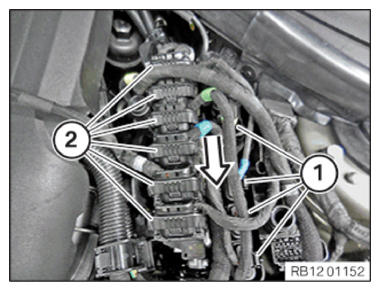

- Connect and lock all connectors (1).
- Connect and lock all connectors (2) in the direction of the arrow.
All connectors must audibly engage.

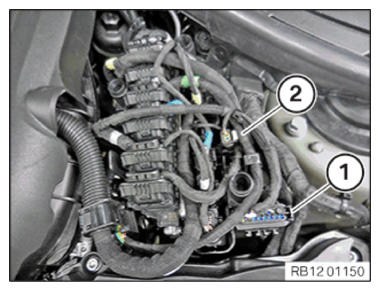

- Connect and lock the connector (2).
- Connect and lock the connector (1).
All connectors must audibly engage.

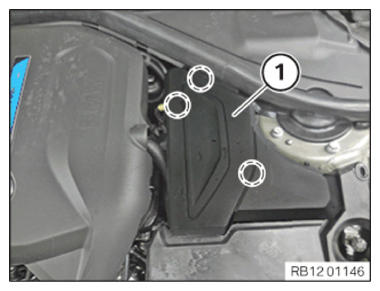

- Clip in the cover (1) into the holders in the indicated areas.
The cover (1) must engage audibly.
