64 53 551 Removing and installing/replacing capacitor (with desiccant insert) for heating and air conditioning system
Special tools required:
WARNING:
Danger of injury!
Refrigerant circuit is under high pressure!
Avoid contact with refrigerant and refrigerant oil.
Read and comply with safety instructions:
Refrigerant circuit is under high pressure!
Avoid contact with refrigerant and refrigerant oil.
Read and comply with safety instructions:
- Handling R 134a tetrafluorethane refrigerant . See 64 50... NOTE FOR HANDLING R134A REFRIGERANT or 64 50... SAFETY INFORMATIONS FOR HANDLING TETRAFLUORETHANE REFRIGERANT R134A
- HANDLING REFRIGERANT FLUID
IMPORTANT:
Risk of damage!
Restart engine only when A/C system has been correctly filled.
FOLLOW INSTRUCTIONS FOR OPENING AND REPLACING PARTS IN REFRIGERANT CIRCUIT!
Restart engine only when A/C system has been correctly filled.
FOLLOW INSTRUCTIONS FOR OPENING AND REPLACING PARTS IN REFRIGERANT CIRCUIT!
NOTE:
Desiccant insert cannot be replaced separately.
Necessary preliminary tasks:
- DRAIN OFF AIR CONDITIONING SYSTEM
- Remove radiator

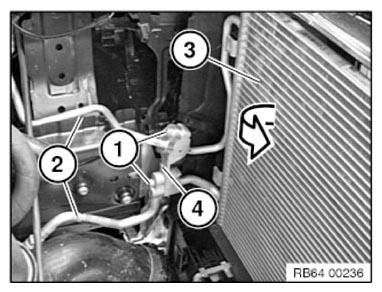

Release screws (1).
Pull out refrigerant lines (2) from condenser (3) and set aside.
Tightening torque 64 53 3AZ .
Release screw (4).
Remove condenser (3) in direction of arrow.
Installation note:
The fins on the radiator and condenser should not be damaged.
Replace sealing rings.
Use special tool 00 9 030 to install sealing rings without damaging them.
After installation:
