22 31 001 Replacing rubber mount for transmission mounting

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Release screws (1).

Tightening torque 18 31 6AZ .

Release screw (2).

Tightening torque 18 31 7AZ .

Remove bracket (3).

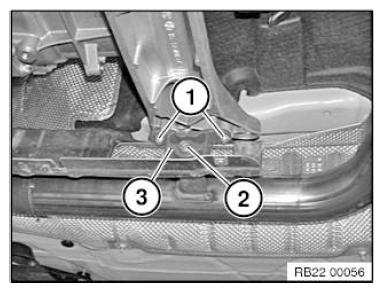

Fig 1: Identifying Transmission Mounting Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Remove heat shield (2).

NOTE: Shown without exhaust system for purposes of clarity. Exhaust system remains fitted.

Fig 2: Identifying Heat Shield Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Remove panel (2).

Fig 3: Identifying Panel Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts.

Tightening torque 22 32 3AZ .

Release screws.

Tightening torque 22 32 4AZ .

Remove transmission cross member.

Remove rubber mount from transmission cross-member.

Fig 4: Locating Transmission Cross Member Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
